GRAFLASH Base plates

GraFlash plates are anodised aluminium plates with sealed pores and a decorative surface structure for mechanical engraving and laser marking purposes.



Aluminium:



Mat and Satin

  • AlMg 1 (5005)
  • ½ hard



Glossy

  • Al 99.85%
  • H18
  • AQ 127


Anodic layer
Plates are only available in 15 µm



Material thicknesses
0.3 mm
0.5 mm
0.8 mm
1.0 mm
1.5 mm
2.0 mm
2.5 mm
3.0 mm
4.0 mm


Surface structures
Mat: all thicknesses
Satin: all thicknesses except 2.5, 3.0 and 4.0 mm
Glossy: 0.5 mm only

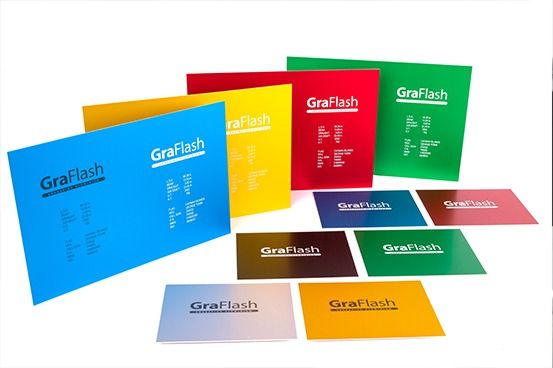

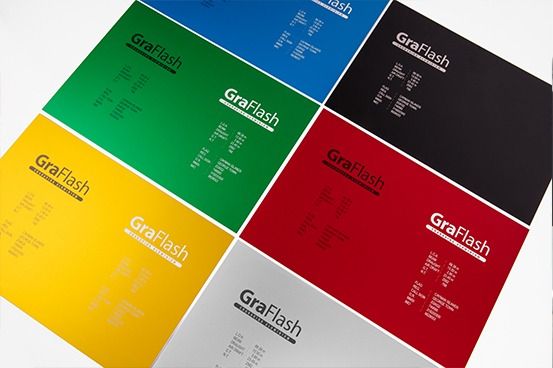

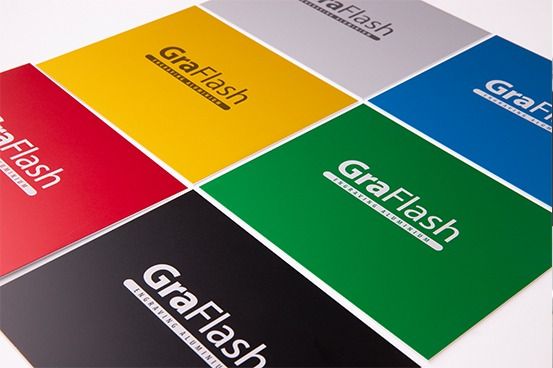

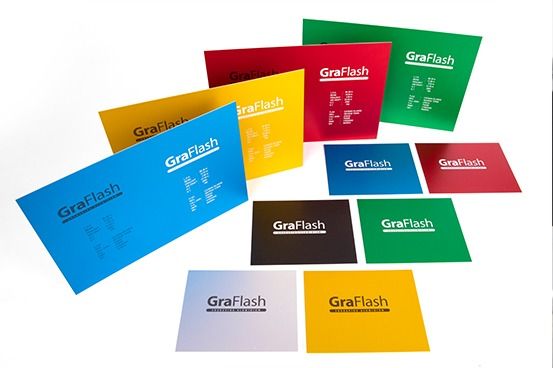

Base colours

Silver: in all thicknesses (front and back)

Black and Gold: only in 0.5, 1.0 and 2.0 mm (front and back)

Yellow YW01B, Green GN04B, Red RD08B and Blue BE05B: 1.0 mm only (front only)

Other colours and thicknesses: on request and at least 50M2 per order per colour.


Shelf life
Indefinite shelf life
